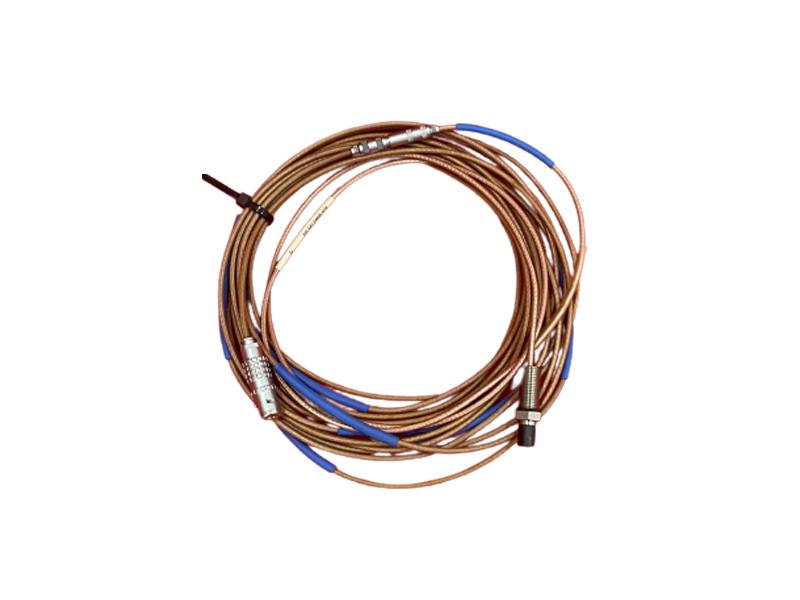

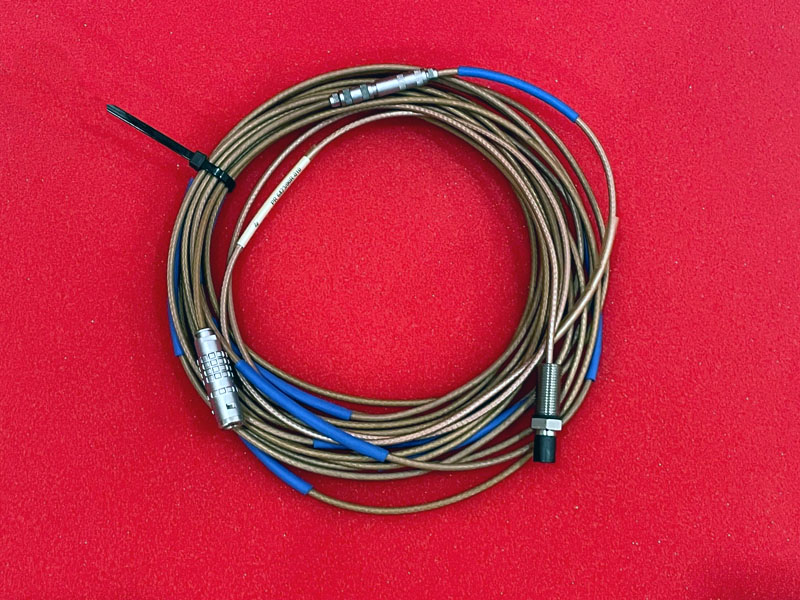

EPRO PR6423/10R-030-CN 8mm Tip diameter Eddy Current Sensor Reverse Mount with 8m cable
Description:
PR6423/10R-030 is designed for critical turbo machinery applications such as steam, gas and hydro turbines, compressors,  gearboxes, pumps and fans to measure radial and axial shaft dynamic displacement; position, eccentricity and speed/key. PR6423/003-030 is M10x1 55 mm case threads without armored. The cable length is 8 meters without adapter plug, the cable end is Lemo.
It is 3/8”-24 UNF case threads without armored cable, 8m cable with adapter plug and Lemo CON cable end.

PR6423/xxx-xxx(Standard) dimension as below:
A. Case thread, M10x1 or 3/8-24UNF
B. Case Length
C. Wrench flats, SW 8 mm for M10 threads, WS 5/16 in for 3/8-24 UNF threads
D. SW 17 mm for M10 threads, SW 9-16 in for 3/8-24UNF threads
E. Standard cable diameter 2.8 mm (0.110 in), minimum bending radius
25 mm (0.984 in)
F. Armored cable diameter 6 mm (0.236 in), minimum bending radius
35 mm (1.378 in)
G. Optional Adapter Plug after 1m cable from Sensor
H. Cable Length (Tolerances 0... +10%)
I. Lemo connector (male), 11.0 mm (0.433 in) diameter or open cable end
