Emerson EPRO PR6423/002-030+CON021 Eddy Current Sensor with Eddy Current Signal Converter CON021
Emerson EPRO PR6423/002-030+CON021 Eddy Current Sensor with Eddy Current Signal Converter CON021
Brand:
EPROItem NO.:
EPRO PR6423/002-030+Order(MOQ):
1Payment:
T/TMarket Price:
999Price Range:
1 - 5Product Origin:
GermanyShipping Port:
XIAMENLead Time：
IN STOCKWarranty:
1 Year

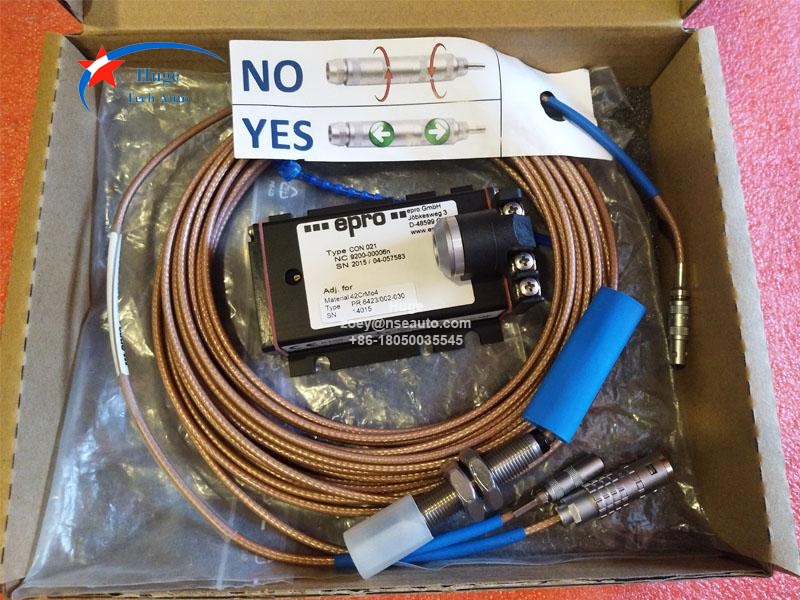

EPRO PR6423/002-030+ CON021 8mm Tip diameter Eddy Current Sensor with Eddy Current Signal Converter
Description:

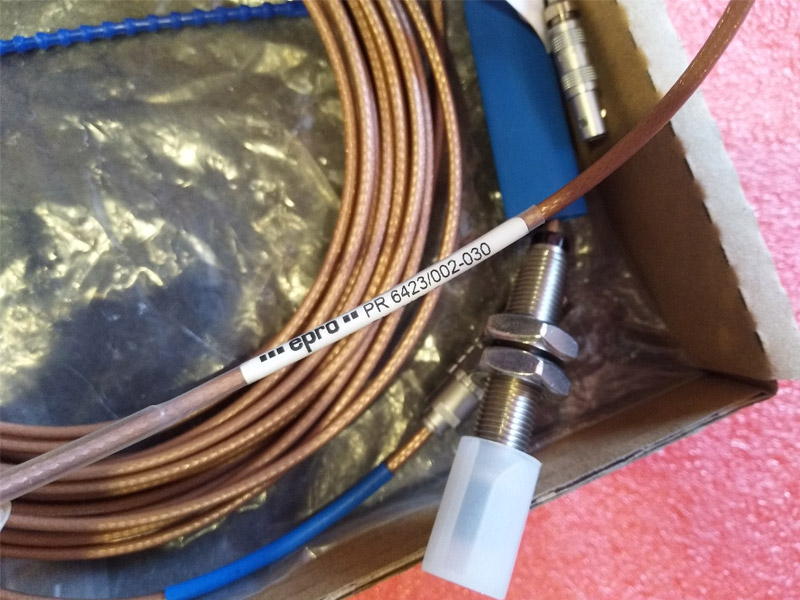

PR6423/002-030 and Con021 are both designed for critical turbo machinery applications such as steam, gas and hydro turbines, compressors, gearboxes, pumps and fans to measure radial and axial shaft dynamic displacement; position, eccentricity and speed/key. PR6423/002-030 is M10x1 45 mm case threads without armored. The cable length is 8 meters without adapter plug, the cable end is Lemo. CON021 is eddy current signal converter, which measuring range is 2.0 mm.
Ordering Information:
|
Tip Diameter |
Case Threads |
Armored Cable |
Model No. |
|
8mm
|
M10x1
|
No |
PR6423/00 |
|
Yes |
PR6423/01 |
||
|
PR6423/03* |
|||
|
3/8”-24 UNF
|
No |
PR6423/10 |
|
|
Yes |
PR6423/11 |
||
|
PR6423/13* |
|
Model No. |
Case Thread X |
Adapter Plug X |
Cable Length X |
Cable End X |
|
PR6423/00 PR6423/01 PR6423/10 PR6423/11 |
0 25mm 1 35mm 2 45mm 3 55mm 4 65mm 5 75mm 6 85mm 7 95mm 8 105mm 9 115mm C 125mm I 135mm K 145mm E 155mm M 165mm J 175mm L 185mm H 195mm R Reverse Mount |
0 With 1 Without |
0 4.0m 1 5.0m 2 6.0m 3 8.0m F 9.0m 4 10.0m |
0 Lemo* 1 Open |
