EPRO PR6423/10R-111+CON031

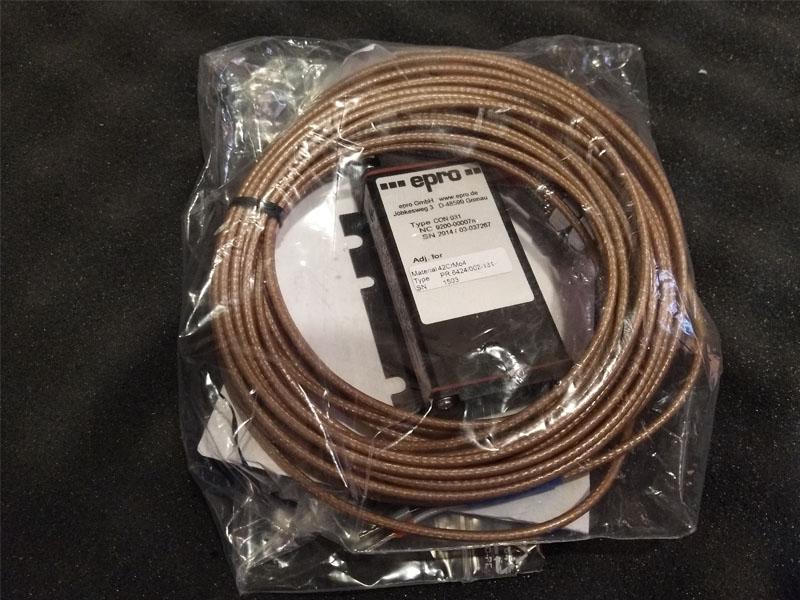

Emerson EPROPR6423/10R-111+CON031 8mm Tip diameter Eddy Current Sensor with Eddy Current Signal Converter CON031

  • Brand:

    EPRO
  • Item NO.:

    PR6423/10R-111+CON03
  • Order(MOQ):

    1
  • Payment:

    T/T
  • Market Price:

    999
  • Price Range:

    1 - 5
  • Product Origin:

    USA
  • Color:

    Depends on material
  • Shipping Port:

    XIAMEN
  • Lead Time:

    IN STOCK
Product Detail

EPRO PR6423/10R-111+CON031 8mm Tip diameter Eddy Current Sensor with Eddy Current Signal Converter CON031
Description:

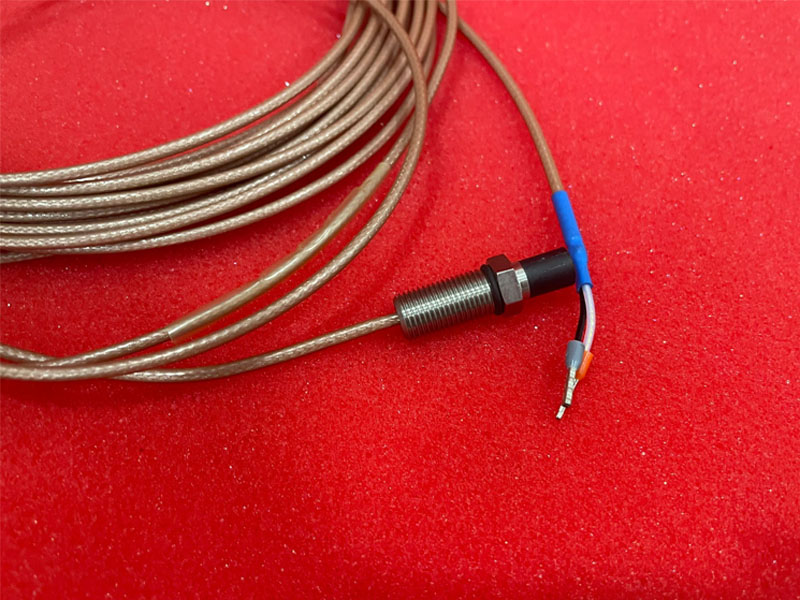

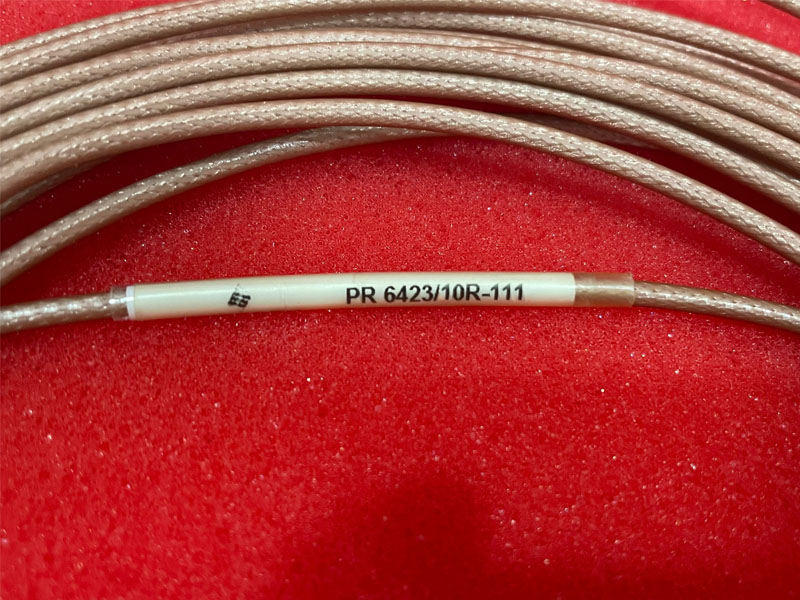

PR6423/10R-111 is 3/8”-24 UNF case thread without armored, Reverse Mount, 5m cable without adapter plug, Open cable end. It is designed for critical turbo machinery applications such as steam, gas and hydro turbines, compressors,  gearboxes, pumps and fans to measure radial and axial shaft dynamic displacement; position, eccentricity and speed/key.
PR6423/xxx-xxx(Standard) dimension as below:
A. Case thread, M10x1 or 3/8-24UNF
B. Case Length
C. Wrench flats, SW 8 mm for M10 threads, WS 5/16 in for 3/8-24 UNF threads
D. SW 17 mm for M10 threads, SW 9-16 in for 3/8-24UNF threads
E. Standard cable diameter 2.8 mm (0.110 in), minimum bending radius
25 mm (0.984 in)
F. Armored cable diameter 6 mm (0.236 in), minimum bending radius
35 mm (1.378 in)
G. Optional Adapter Plug after 1m cable from Sensor
H. Cable Length (Tolerances 0... +10%)
I. Lemo connector (male), 11.0 mm (0.433 in) diameter or open cable end
Ordering Information:

Tip Diameter

Case Threads

Armored Cable

Model No.

8mm

M10x1

No

PR6423/00

Yes

PR6423/01

PR6423/03*

3/8”-24 UNF

No

PR6423/10

Yes

PR6423/11

PR6423/13*

*Armored cable option for Reverse Mount, if Adapter Plug is chosen.

Model No.

Case Thread X

Adapter Plug X

Cable Length X

Cable End X

PR6423/00

PR6423/01

PR6423/10

PR6423/11

0 25mm

1 35mm

2 45mm

3 55mm

4 65mm

5 75mm

6 85mm

7 95mm

8 105mm

9 115mm

C 125mm

I 135mm

K 145mm

E 155mm

M 165mm

J 175mm

L 185mm

H 195mm

R Reverse Mount

0 With

1 Without

0 4.0m

1 5.0m

2 6.0m

3 8.0m

F 9.0m

4 10.0m

0 Lemo*

1 Open

*Not available, if Reverse Mount without Adapter Plug is chosen.
